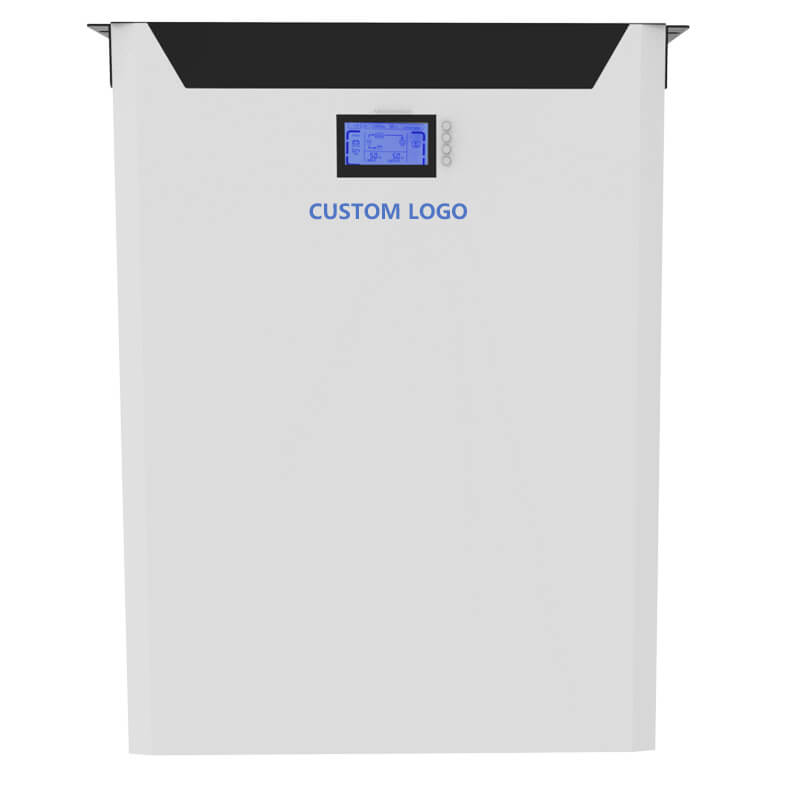

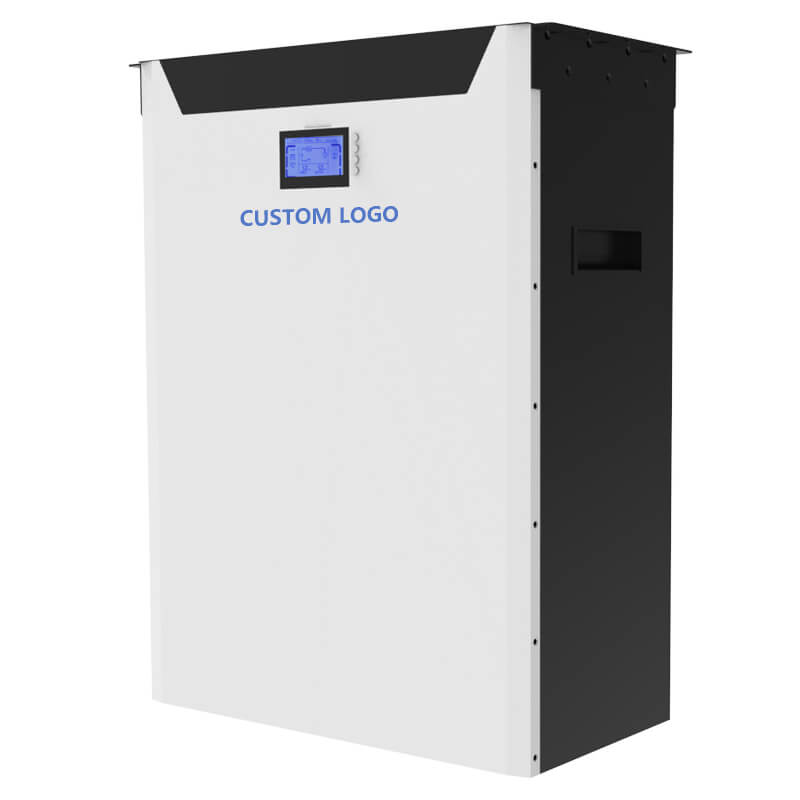

10Kwh Lithium Battery Powerwall 48V 200Ah Battery Solar Storage System
The Virtue 10KWh 48V 200Ah Solar Wall Battery is designed for home energy storage systems. This lithium battery powerwall is made up of high-quality 15S2P CATL 3.2V 100Ah prismatic lithium phosphate batteries, built-in fiberboard and smart Battery Management System, with high-density, high-cycle, and high-safety features. With successfully completed over 100 wall mounted battery energy storage solutions, Virtue can offer dynamic and flexible solutions for your next projects.
- Voltage: 48V
- Capacity: 200Ah
- Cycle life: 6,000 Times
- Warranty: 5 years Extended 10 Years.
- Battery Cell: 3.2V 100Ah LifePo4 Cell.
- Application: Solar home backup systems, Energy storage.
10kWh Battery Product Specification
Normal Voltage: 48V
Rated Capacity: 200AH
Series * Parallel Standard: 1S * 8P
Series * Parallel Maximum 1S * 15P
Circuit Protection: Over Charge & Over Discharge & Over current & Over temp & Short circuit & Balance.
Cycle life: ≥ 6000 cycles @ 0.5C 80% DOD
Monthly Self Discharge: Less than 2%
Efficiency of Charge: 100% @ 0.5C (when used with proper LiFePO4 charger)
Efficiency of Discharge: 96 ~ 99% @ 1C
Charge Voltage: 55.2 ± 0.2V
Standard Charge Current: 50A
Max. Charge Current: 100A
Std. Discharge Current: 100A
Max. Discharge Current: 100A
Discharge Cut-off Voltage: 44.8V
Charge Temperature: 0° C to 55° C (32° F to 131° F) at 60 ± 25% Relative Humidity
Discharge Temperature: -20° C to 60° C (-4° F to 140° F) at 60 ± 25% Relative Humidity
Storage Temperature: -20° C to 45° C (-4° F to 113° F) at 60 ± 25% Relative Humidity
Cell Material: LiFePO4
Class/IP Class: Metal Shell/ IP20

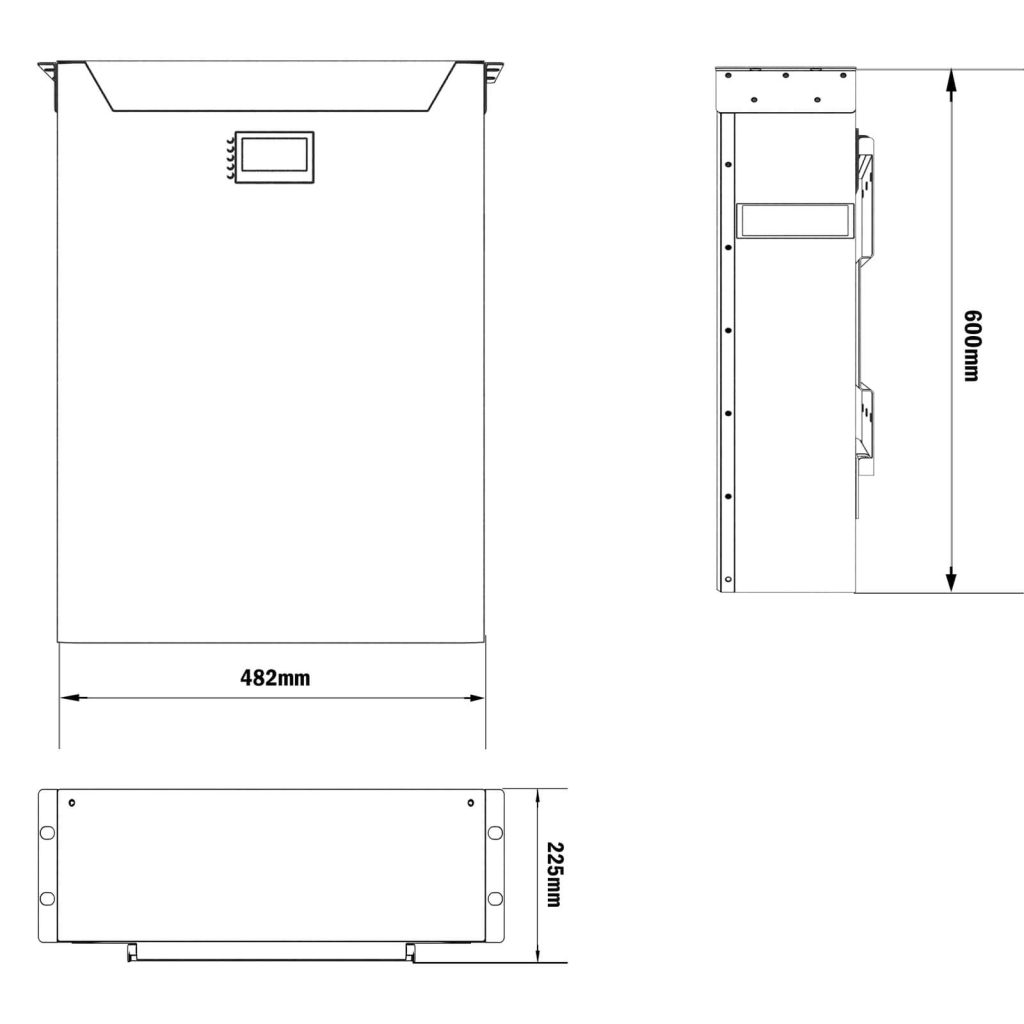

Dimensions (mm) L225*W482*H600
Approx. Weight (kg): 85 Kgs
Communication port: RS232 & CAN & RS485
Extended Functions: Bluetooth, 4G module.
10kWh Lithium Battery Product Advantages
Long life ( 6000 cycles, up to 10 times longer life span compared to lead-acid batteries. )
Big Capacity ( 100% depth of discharge (DOD), 25-50% more useable capacity than lead-acid batteries.
Lightweight ( Average 70% lighter than the same size traditional lead-acid batteries)
Fast & Safe Charge ( High charge/discharge rate, charge much faster than traditional lead-acid batteries)
Built-in protection ( Every battery comes with a built-in battery protection system.
Flexibly expanded capacity (Max. 15 modules in parallel, which can be flexibly expanded to meet different energy needs of the family.)
Eeo-Friendly ( Ultimate clean energy, no gassing, no fumes, no pollution, non-hazardous batteries.
300+ Patents & Certificates
Strictly comply with international applicable safety standards: IEC62619, ROHS, CE-EMC, MSDS, UN38.3
Core Technology Of 48V Powerwall LifePo4 Battery Pack
6000+ Lifespan A+ LiFePO4 Cells
Made by CATL & BYD & GOTION brand long lifespan A+ LiFePO4 Cells. Excellent cycle life. High consistency LiFePO4 cells in 15S for 48V LifePo4 battery pack.
Smart BMS for 15S 48V 200A
Three communication methods of RS232/ RS485/ CAN, it is connected to the upper computer or touch display and the mobile APP to intelligently manage of the lithium battery. Support to custom development of mainstream inverters communication protocols.
Structural design with both heat dissipation and performance
The battery cell of 48V LiFePO4 pack has reasonable arrangement and interval, rapid air cooling and heat dissipation inside the battery pack, excellent electrochemical performance, shockproof and smaller size.
Contact Us To Start Your 48V 200Ah Lithium Battery Pack
Send Us A Short Message.
We are the reliable OEM & ODM manufacturer of Powerwall battery, with rich experience in solar battery storage system solutions.
FAQ about the 48V 200Ah Powerwall Lithium Battery Pack
Is the Powerwall output voltage and current applicable to the equipment in our country?
Different countries and regions have different output voltage and current, we can customize the output voltage and current for you.
What Is The 10kwh Lithium Battery 48V Cost
Please click “Get a quote” above or “Contact us“, We will offer you with factory price in 6 hours after we get solar wall mounted battery specifications from you, such as capacity, application and etc.
Is it suitable for off grid hybrid solar system?
Sure, Our wall mounted lithium battery can store solar energy converted into electricity, is a good choose for commercial and household energy storage.
How can I receive my lithium battery packs?
We have freight forwarding company to help deliver it to your location. Alternatively, you can specify your own freight forwarder.
