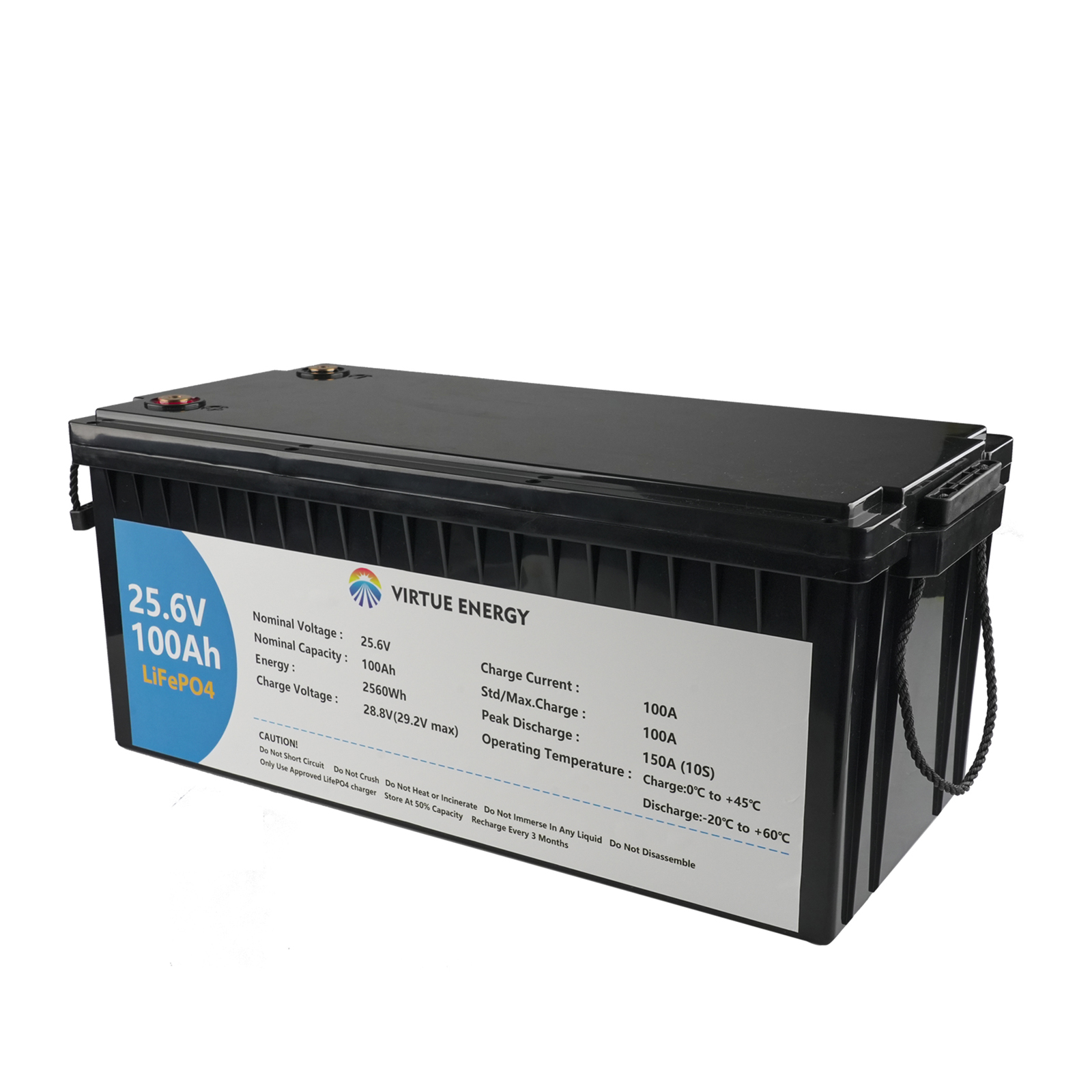

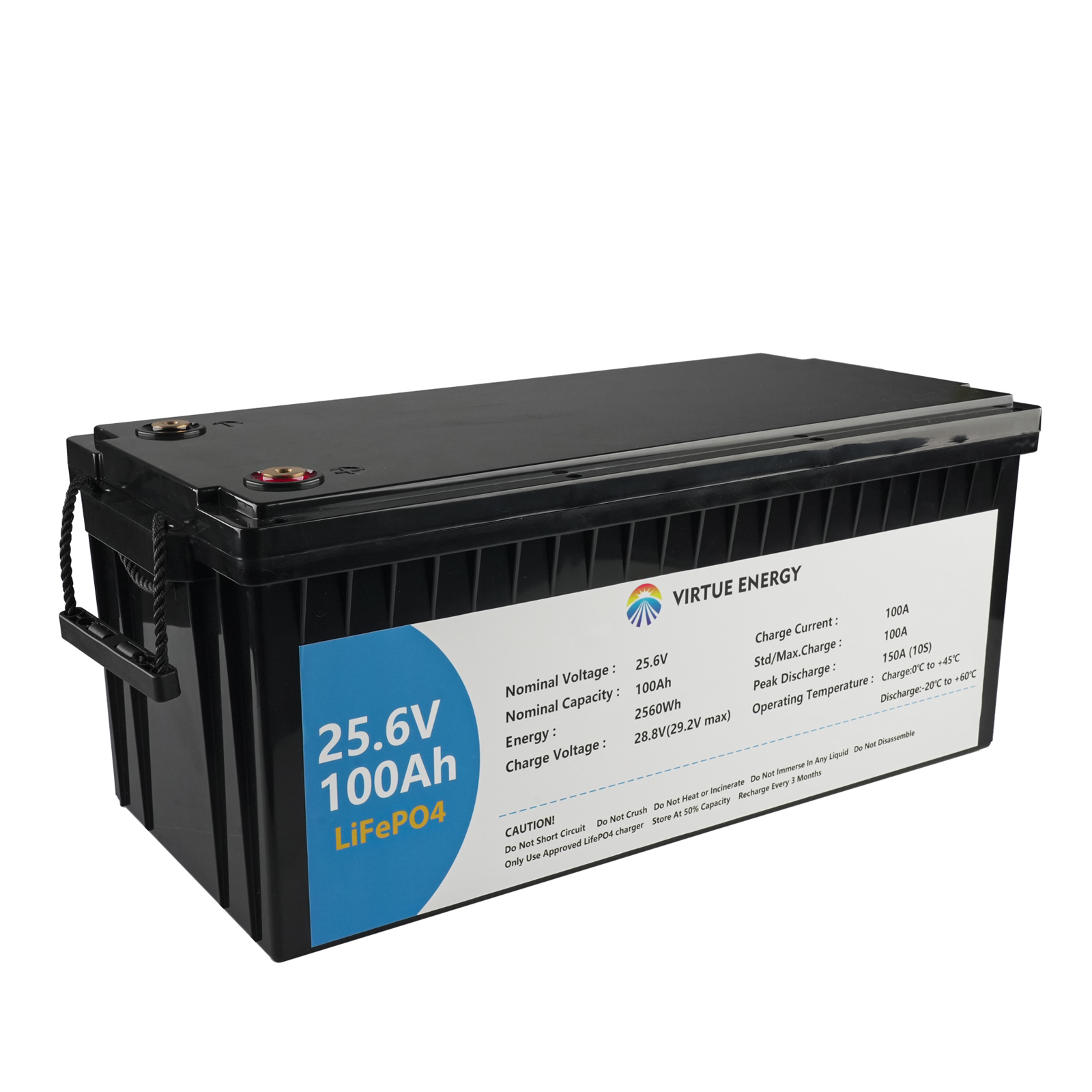

LiFePO4 Battery Lead Acid Replacement Case 24V 100Ah Lithium Battery
Virtue 24v 100ah lithium battery is an ideal solution to drop-in lead-acid replacement in RVs, floor machines, renewable energy systems and more applications. It’s composed of CATL LiFePO4 cells and 100A battery management system that ensure battery running optimally within a safe range. Our 24 volt 100ah lithium battery is maintenance-free, can deep cycle more than 4000 times to 80% DOD. Moreover, it could be extended to 51.2v 100ah or 25.6v 400ah to meet your energy needs.
- Voltage: 25.6V
- Capacity: 100Ah
- Cycle life: 4,000 Times
- Warranty: 5 years Extended 10 Years.
- Battery Cell: 3.2V 100Ah LifePO4 Cell.
- Application: RV, ideal Bundle for inverter trolley, residential solar system, floor machines and UPS etc;
Product Specification
Normal Voltage: 25.6V
Rated Capacity: 100AH
Series * Parallel Maximum 2S * 4P
Circuit Protection: Over Charge & Over Discharge & Over current & Over temp & Short circuit & Balance.
Cycle life: ≥ 4000 cycles @ 0.5C 80% DOD
Monthly Self Discharge: Less than 2%
Efficiency of Charge: 100% @ 0.5C (when used with proper LiFePO4 charger)
Efficiency of Discharge: 96 ~ 99% @ 1C
Charge Voltage: 29 ± 0.2V
Standard Charge Current: 50A
Max. Charge Current: 100A
Std. Discharge Current: 50A
Max. Discharge Current: 100A
Discharge Cut-off Voltage: 21.6V
Charge Temperature: 0° C to 45° C
Discharge Temperature: -20° C to 60° C
Storage Temperature: -20° C to 45° C
Cell Material: LiFePO4
Class/IP Class: Plastic/ IP65
Dimensions (mm) L522*W240*H218
Approx. Weight (kg): 22.60 Kgs
Terminal type: M8
Extended Functions: Bluetooth, LCD screen
Virtue 25.6V 100Ah LiFePO4 Battery Datesheet.
Product Advantages
High cycle life
24v 100ah lithium battery is able to charge and discharge 4,000+ times, which is 8 times more than SLA battery. And our drop in replacement lithium battery with 10 years design life of power, can reduce your overall investment and provide benefits.
Strong security
It’s manufactured with LEF cells which without toxic substances and doesn’t release harmful gases during operation. With IP 65 enclosure and built-in BMS which provide multiple protections like high currents, short circuits, balancing functions, etc.
Superior performance
24v 100ah battery with up to 99% round-trip efficiency, which is 40% higher than lead-acid battery. It support 1C discharge and working in a wide temperature rang of -20℃ - 60℃ that widely than lead-acid battery.
More usable capacity
24v 100ah lithium battery has 100% usable capacity which 30% more than lead-acid battery. It’s nominal specification is 25.5v 100ah, support a max 2S4P connection to obtain a large capacity of 20.48kWh.
300+ Patents & Certificates
Strictly comply with international applicable safety standards: IEC62619, ROHS, CE-EMC, MSDS, UN38.3
Core Technology Of 25.6V 100Ah LiFePO4 Battery
4000+ Life Cycles Grade A LiFePO4 Cells
Composed of CATL / BYD / EVE / GOTION A-grade LiFePO4 cells, provides excellent service life. High consistency LiFePO4 cells in 8S for 25.6V lithium battery.
Built-in Smart Battery Management System
The High-end BMS control system with various protection funtions to keep your system operation and grid response operating safely and optimally.

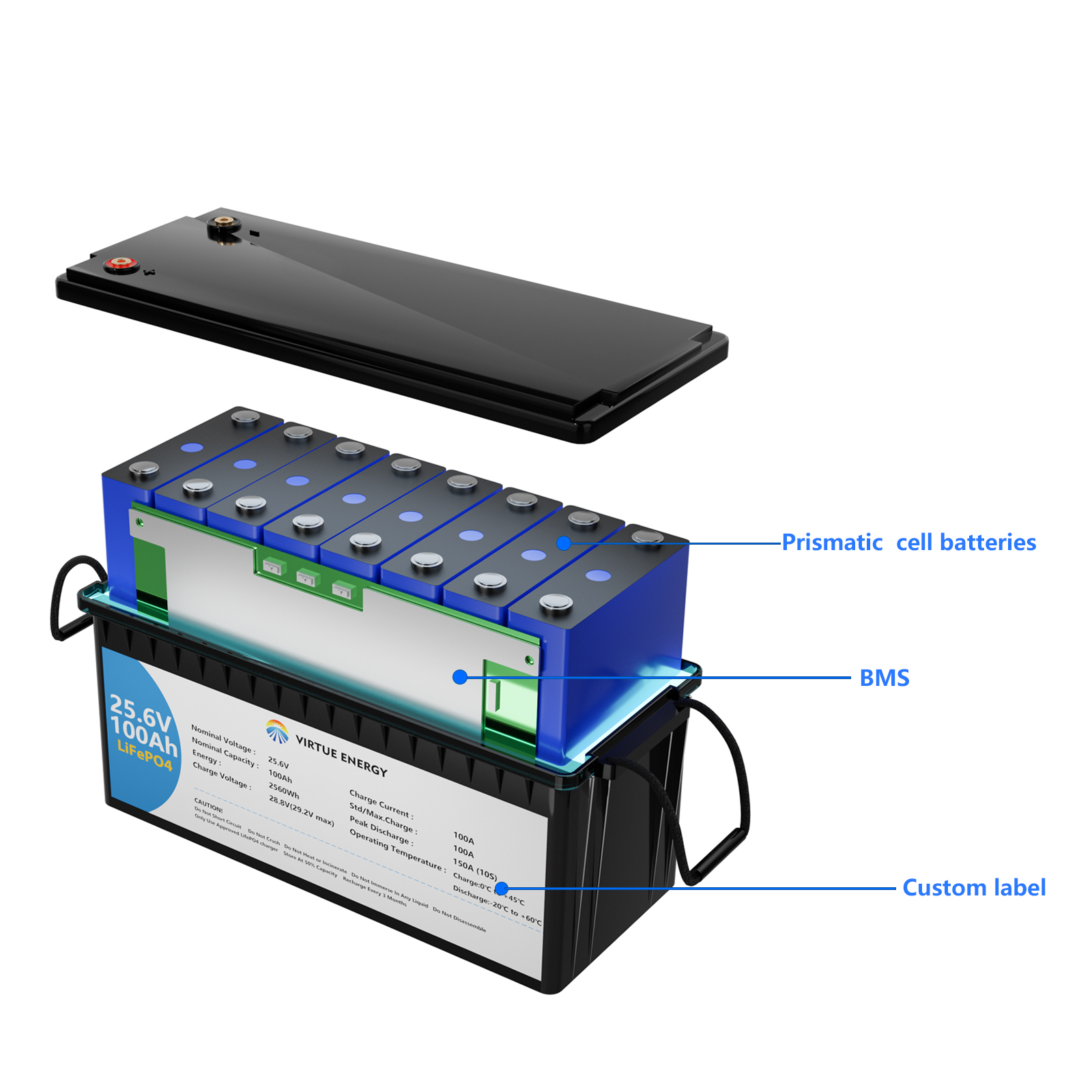

Structural design with both heat dissipation and performance
The battery cell of 25.6V LiFePO4 battery pack has reasonable arrangement and interval, rapid air cooling and heat dissipation inside the battery pack, excellent electrochemical performance, shockproof and smaller size.
Contact Us To Start Your Lithium Battery 24V 100Ah
Send Us A Short Message.
We are the reliable OEM & ODM manufacturer of 24V 100Ah battery, with rich experience in 24v lithium battery pack. All reply will be answered within 6 hours.
FAQ About The 24v 100ah LiFePO4 battery
24v LiFePO4 batteries offer a longer service life, higher energy density, lighter weight, high discharge rate and shorter charging time than lead-acid batteries.
Yes! As lithium iron phosphate battery pack manufacturer with 15 years R&D and OEM experience, we’re able to manufacture lithium battery according to your specific application needs.
Ours 24v lithium battery support 5 years warranty and extended 10 years warranty. And we have after-sales service. If you encounter any problems while using Virtue 24v LiFePO4 drop in replacement battery, please feel free to contact us and we will provide professional assistance within 6 hours.
It depends on your order quantity and our inventory. Please do not hesitate to “Contact us” for detailed time.
Yes, Virtue 24v drop in replacement lithium battery can charge by DC and solar panels.
Yes, but we recommend that you choose our 48v lithium battery for maximum efficiency and power output.
